@Michael-U06TYNCASBG – Hack Club Scrapbook

Sun, Aug 25, 2024

Greetings! Last Arcade Scrapbook (from me). I made some informative (and a little humorous) sildeshow templates talking about hack club and a OnBoard worksop (still WiP!) github.com/mikeymascatu/SlideshowTemplate/commit/18cdb393554c23e9883f308686b348fa63115ff4

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/36c7e1fd-8137-486f-a9d8-ccb418809f14-f6bcccef-460d-4189-90bc-4372f6d1e2ec.png

Sun, Aug 18, 2024

Introducing a new update for my Arcade WiFiClock firmware for Hack Hour Clocks/Arcade Ticket Counters! Major bugs were finally squashed a new 3D Printable case is out for you all to print and assemble! github.com/mikeymascatu/Arcade-WiFiClock

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/cca3fd36-35ee-4d9a-b453-0c864763ca07-b31af8c7-af97-4ce0-9b70-d492ba12e2ab.png

Sun, Aug 18, 2024

I finished the spec sheet and full description of the :forge_logo1:Forge GitHub Repo! Check it out below: github.com/EmperorNumerius/Forge

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/89e1eec6-d80e-4e00-81f3-741add932b9a-a14d4925-7d2d-4827-bd3e-a112c0cfdf74.png

Sat, Aug 17, 2024

Introducing a brand new WiP module for the ModularFPV Drone project! An alternative auxiliary systems receiver powered by a Raspberry Pi Pico W. The PiFli WiFi Transceiver module allows you to control your ModularFPV drone with your phone or any WiFi device completely offline! At this state, the mounting hardware is done and the web portal frontend is mostly done. In the future, I'll start working on the backend and getting the hardware to properly communicate between a phone and a MFPV Drone. ModularFPV-PiFli GitHub: github.com/mikeymascatu/MFPV-PiFli ModularFPV Project GitHub: github.com/mikeymascatu/MFPV

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/069a0de4-b5ef-47e0-b8ad-896ea38b6afb-da144bd2-33d6-4a94-90ae-0637cb9a83d1.png

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/07fd6823-692e-46d3-9789-2ed2b5ab15e2-4bb5864c-30ae-4358-8c77-eff66349d5c7.png

Sat, Aug 10, 2024

I've never gotten around to sending this but I've been cookin' up a script for my 3D printing YT channel. I present the ultimate 3D printer tier list (imo). I will probably be flame broiled for my list if I send this over to #CLQRM7F9C| . For my reviewers, most of this was written before the art expansion (so not really a gh repo but I'll attach my version history in a thread) and some of the script was written for arcade V1. docs.google.com/document/d/1WoC0mrAl5TfqTe7ca0K0V27G_b_JHxFJ7Gclqr6HPp8/edit?usp=sharing

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/735ae5bf-960a-435b-828d-8a01a3126a78-ddce0d79-88d6-4857-8054-68a3c76973cc.png

Sat, Aug 10, 2024

Made a soap holder that drains into your sink using OnShape. cad.onshape.com/documents/47b42a2a4bfcce14a984af1b/w/f7d10dfe136b2078626b4a6[…]e7b40dcb70513b4?renderMode=0&uiState=66b7efabc54ead112c16bc81 makerworld.com/en/models/582061#profileId-503194

Sat, Aug 10, 2024

Hey everybody. I'm backkkkk with another scrapbook. For those of you who messed with a micro:bit in school, have you ever wondered? But can it do more? I've been testing the limits of the microbit and present a tech demo of a UI system using a 1306 I2C OLED and a microbit! github.com/mikeymascatu/microbit-oled-ui-demo

Sat, Jul 13, 2024

Do you wish your Arcade Ticket Counter (or Hack Hour Clock) did more? Introducing Arcade-WiFiClock, an alternative firmware for the Arcade Ticket Counter that turns your ticket counter into a WiFi-powered desk clock using NTP. This makes it super accurate and doesn't require resetting the time after a power/network outage. Massive thanks to @sam for helping me debug some major issues github.com/mikeymascatu/Arcade-WiFiClock

https://scrapbook-into-the-redwoods.s3.amazonaws.com/b9089d5d-b789-4c3c-8060-4a6cfcfb7983-img_6887.jpg

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/794a70b8-e69e-41ba-9b22-2f7a1afbb178-b6c9386f-8273-44d1-bf1c-26011c2f44d6.png

https://scrapbook-into-the-redwoods.s3.us-east-1.amazonaws.com/3df5dd60-199a-43d6-9c42-048128401754-729cd12a-1191-4840-8b95-727489febcfb.png

Thu, Jul 11, 2024

A-Frame ship for #arcade / #fraps I made a little Hack Club themed cafe because why not. GitHub: github.com/mikeymascatu/coffee-shop-a-frame Site: 669035942f89513d26549e4b--chic-torte-705dd5.netlify.app

https://scrapbook-into-the-redwoods.s3.amazonaws.com/29c5dd6c-5418-4c86-9ea1-ae2fb05990e9-screenshot_2024-07-11_153800.png

Thu, Jul 11, 2024

Submitting my personal website for #boba / #arcade Repo: github.com/mikeymascatu/personal-portfolio/tree/main Site: mikeymascatu.github.io/personal-portfolio

Fri, Jul 5, 2024

I'm scrapbooking my CAD/BOM work on Forge (Blot3D in older sessions) (#forge-dev). An upcoming YSWS revolving 3D printing and programatic modeling. Here's a preview of the Forge 3D printer as prototypes begin to be produced: (Here you go, leekers) OnShape (STEP and STLs are in Repo): cad.onshape.com/documents/490fa34c5c188f9b01dad5d1/w/4ce61de39bd6c276033d903d/e/7a262062418efbefd9181a13 GitHub Repo: github.com/EmperorNumerius/Forge BOM (sent to tentative manufacturer): docs.google.com/spreadsheets/d/1P1xfbSgGwmr2g5f4_S4GpgTb6g0Ht4fljXxcMSExDWo/edit?usp=sharing

https://scrapbook-into-the-redwoods.s3.amazonaws.com/f144ab26-ead8-4515-a2c9-0ce37b879cad-screen_shot_2024-07-05_at_5.27.35_pm.png

Mon, Jun 24, 2024

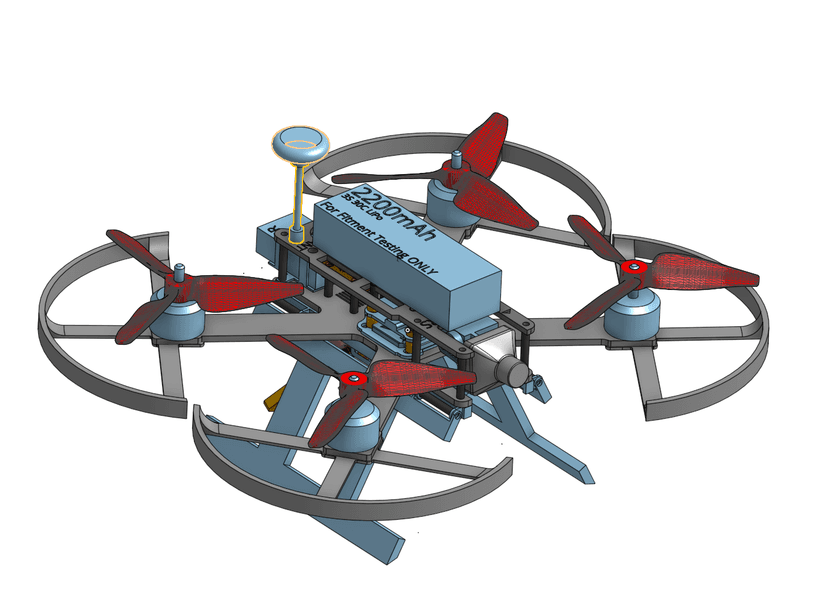

Re-Ship! Finished polishing my open source modular FPV platform and is now ready for you guys to actually try building it (if you're crazy like that). github.com/mikeymascatu/MFPV

https://scrapbook-into-the-redwoods.s3.amazonaws.com/32a722fb-31b4-4d5c-b56a-5e237e8c1bb5-image.png

Tue, Jun 18, 2024

I present a protective cover for the Hakko Blue 508 Soldering Iron. Made for #arcade, reposting due to issues with the bots from yesterday. 3D printed in PETG
